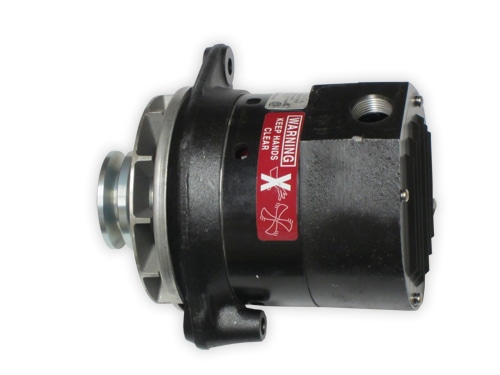

NON-INCENDIVE ALTERNATORS
Our explosion proof alternators are available in both hinge and J-180 base design mounting configurations. Depending on your specifications, we offer alternators with either keyed or threaded shafts which are available ranging from .625 inches (15.875mm) to .680 inches (17.272mm). Alternators are available in your choice of a brushed or brushless design.
Following NEC Class I, Division II group D standards, our high quality alternators are constructed for battery charging on stationary engines, and other such needs. With solid state voltage regulation in place, our alternators are equipped to handle voltage ratings from 12-24 VDC with outputs up to 70 amps and can be used on almost all engine types, including diesel or natural gas. To learn more about our alternators see the table below or contact us directly.
Examples of Our Work
NON-INCENDIVE ALTERNATORS - Capabilities
- Industry Focus
Marine
Petroleum
Pipeline
Power Generation
Natural Gas Compression
- Intended Application
Diesel Engines
Natural Gas Engines
- Mounting Configuration
NEMA “C”
Hinge Mount
J-180 Base Design
- Shaft Type
Keyed
Threaded
- Direction of Rotation
CCW
CW
- Voltage Regulation
Built in Solid State
- Voltage
Min
12 VDC
Max
28.4 VDC
- Maximum Amperage
12 VDC
70 A
24VDC
60 A
- Shaft Diameter
Min
.625 in
15.875 mm
Max
.680 in
17.272 mm
- Keyway Width
.625 Shaft
.1875 in (3/16)
4.763 mm
.680 Shaft
.1562 in (5/32)
3.968 mm
- NEC Class
Class I, Division II
Group D
- Casing Material
Aluminum & Steel
- Production Volume
Min
1 units
- Typical Lead Times Available
Min
Stock
Max
6 Weeks
- Industry Standards
CSA
Canadian Standards Association
SAE
Society of Automotive Engineers
UL
Underwriters Laboratories
